FORERUNNER - TAKING LUXURY TO A NEW LEVEL

Caravans Range


ABOUT
ASK A QUESTION VIEW GALLERY SPECS & BROCHURES GET FINANCE

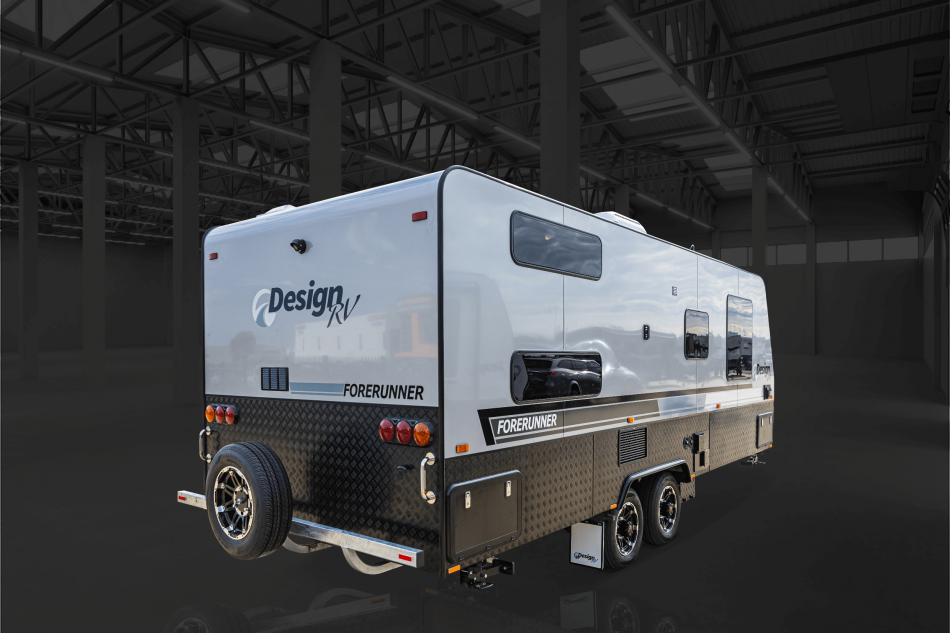

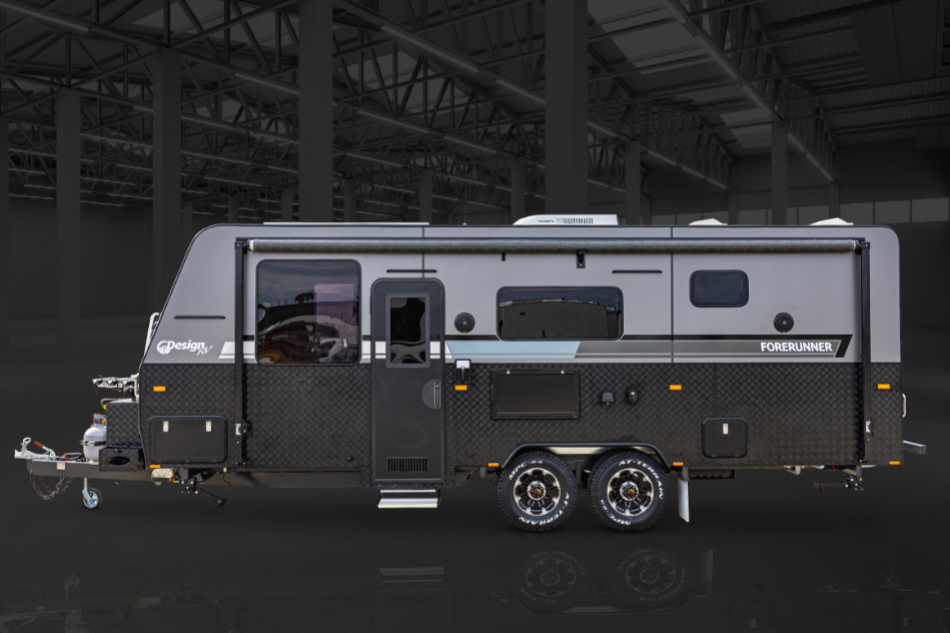

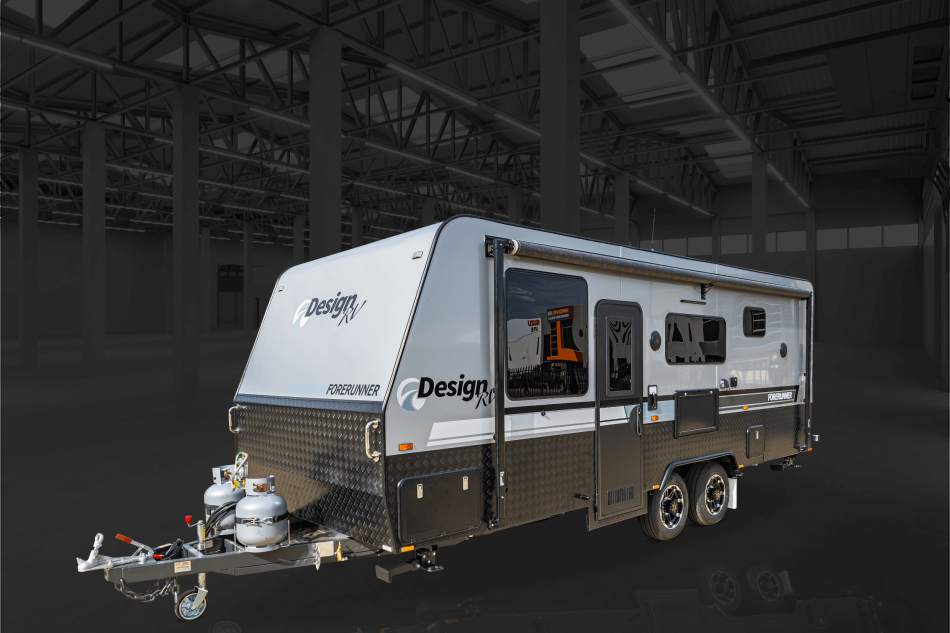

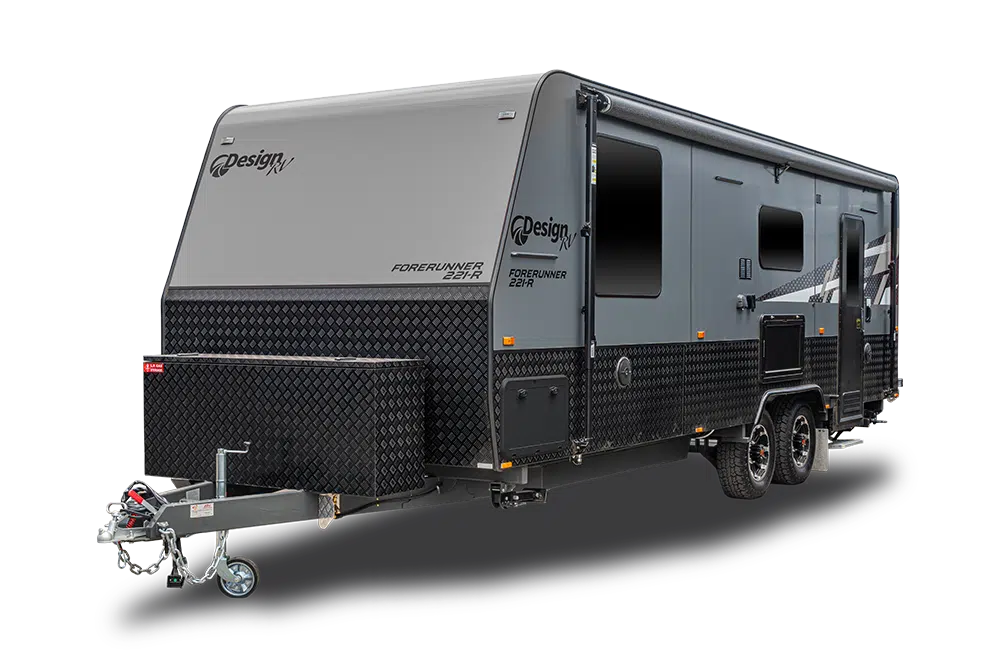

Exterior
The Forerunners aluminium cladding coupled with our distinctive decals and sleek colour coded composite paneling across the back give a luxury finish to the Foreunner that is sure to impress. External features which include; a reverse camera, solar, external lights, external speakers, picnic table, pull out step etc. – will give you the confidence you need to make the many highways and destinations of Australia your backyard

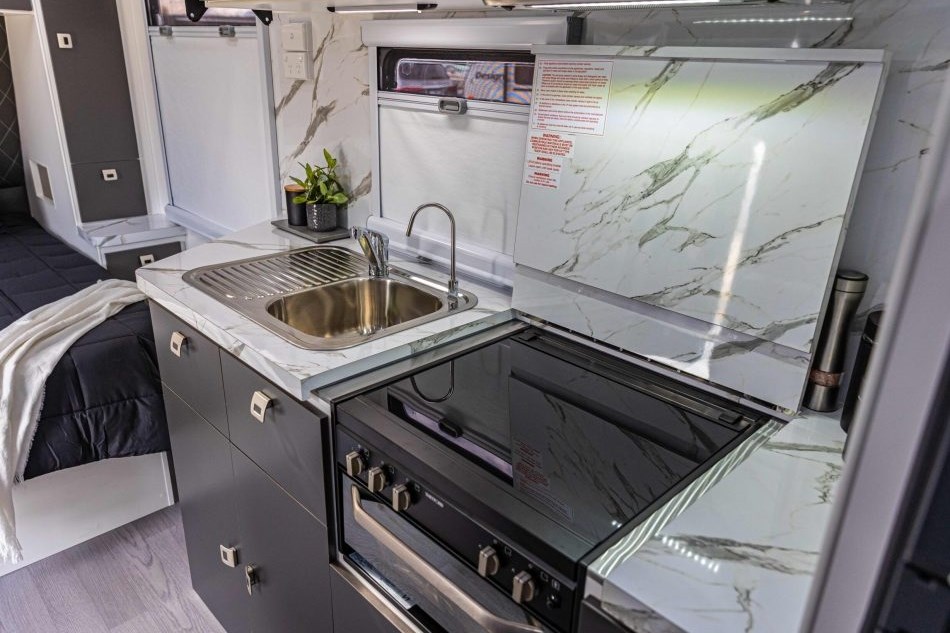

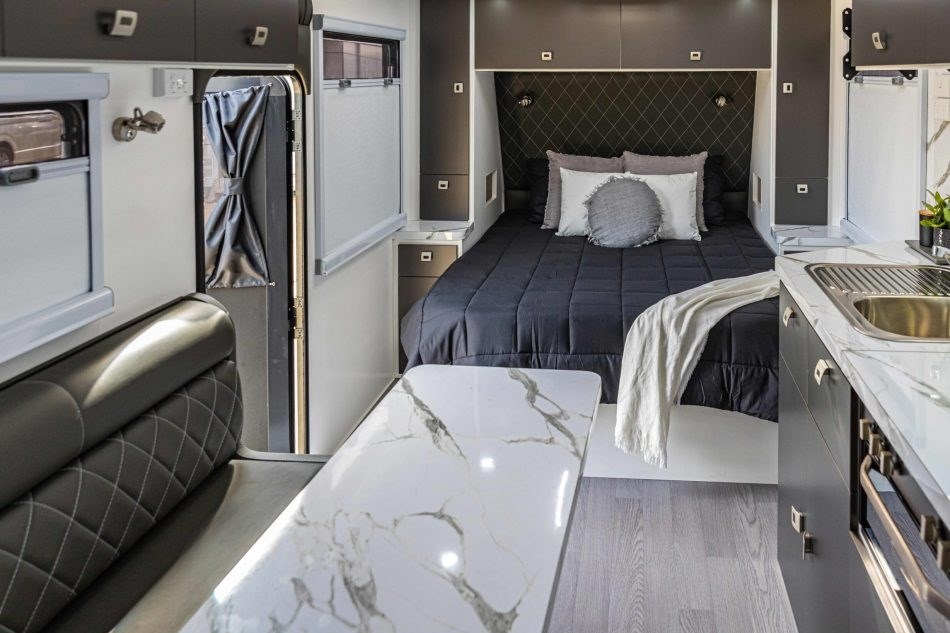

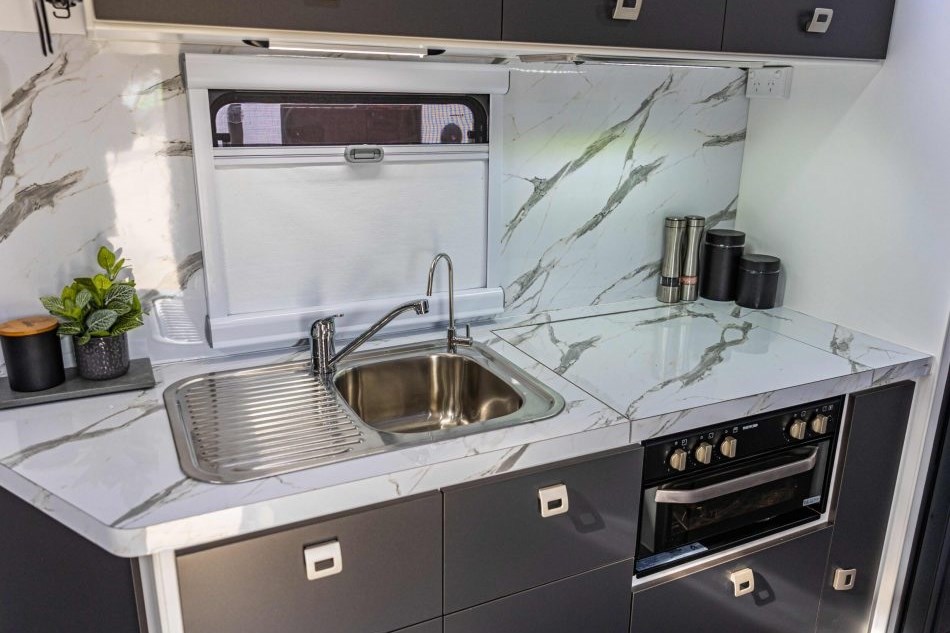

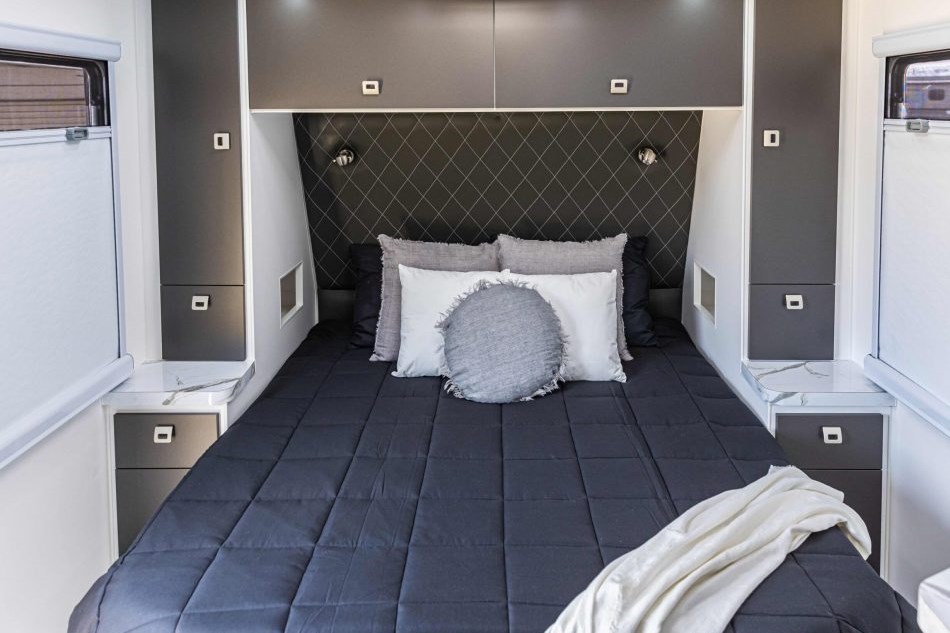

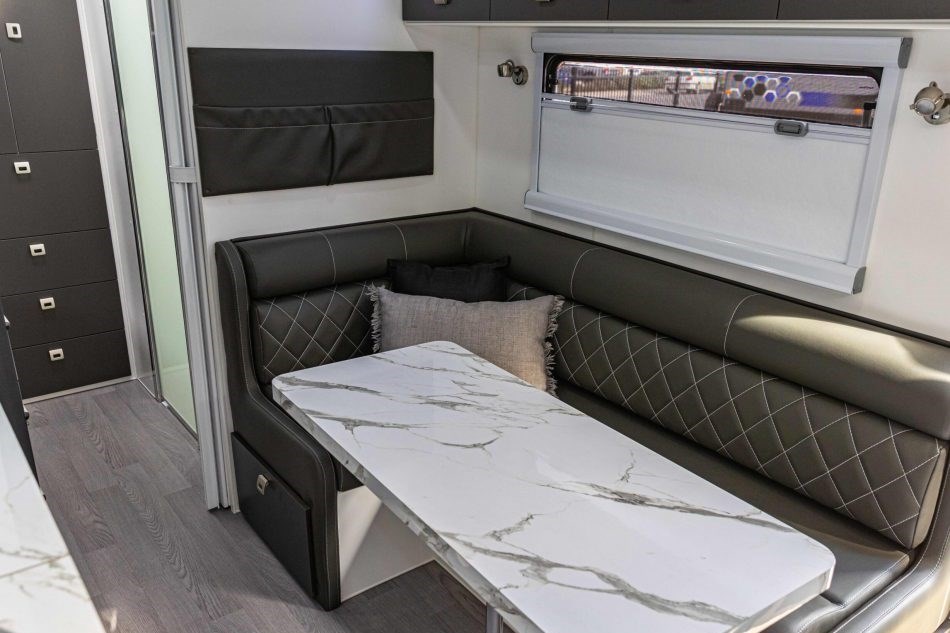

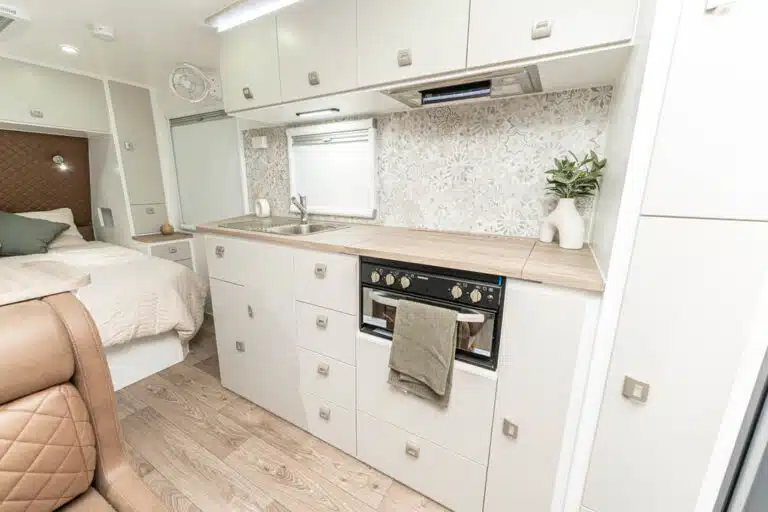

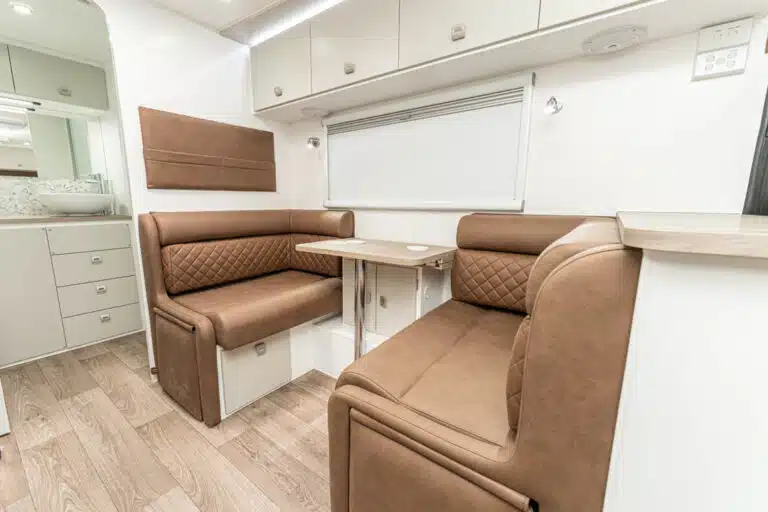

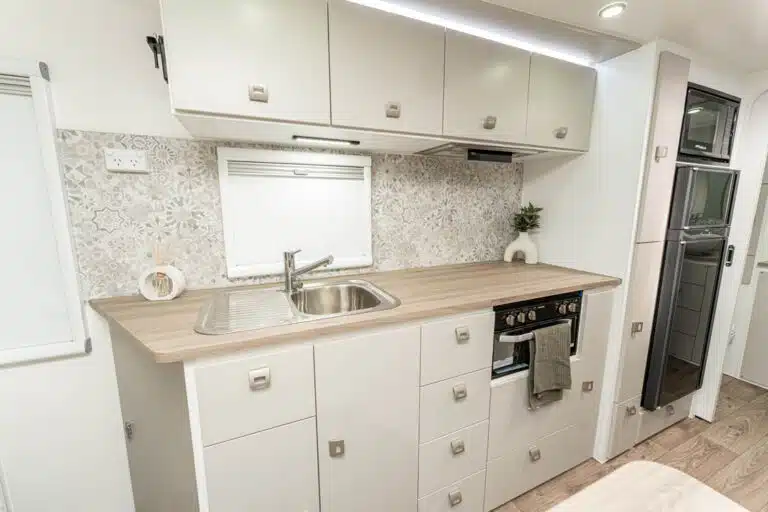

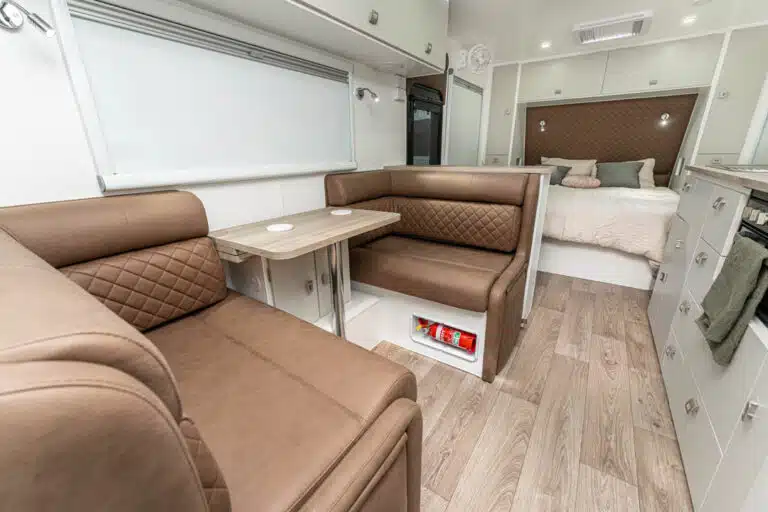

Interior
The Forerunner is your ticket to travelling Australia in style. Design RV has spent years designing and perfecting this range to bring you the most comfortable and affordable travel experience available on the market today. This modern range has been fitted with A/C, an entertainment system, TV, microwave and other high end appliances. Each caravan comes furnished with an ensuite, shower and toilet, fully equipped kitchen, and a spacious layout design.

SERIES INFORMATION

Select a series below to view specs, features and to download a brochure.

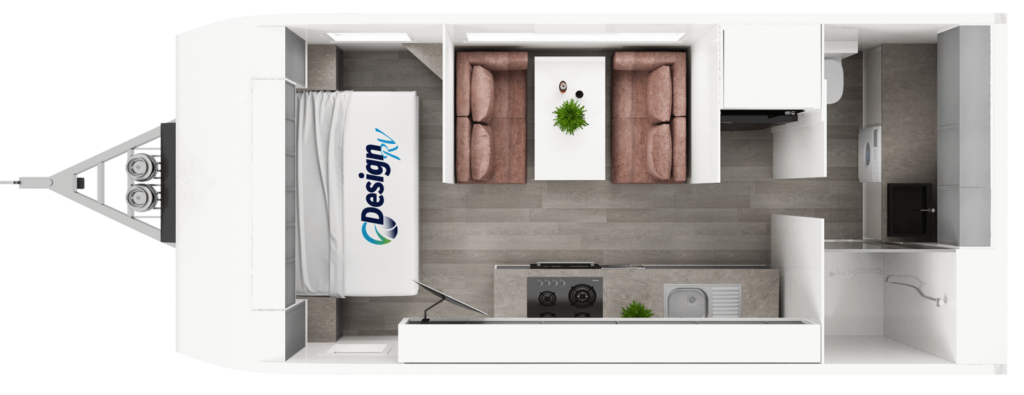

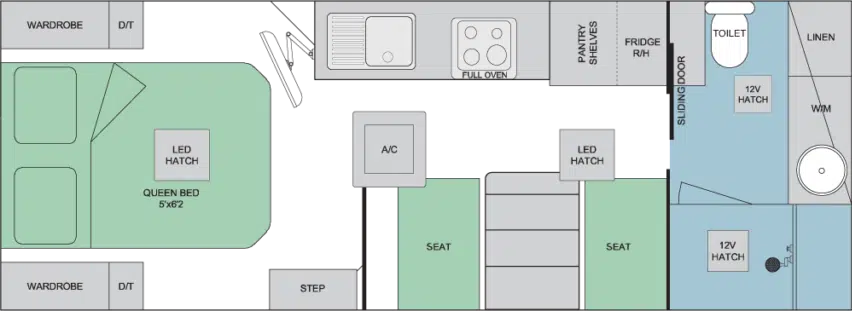

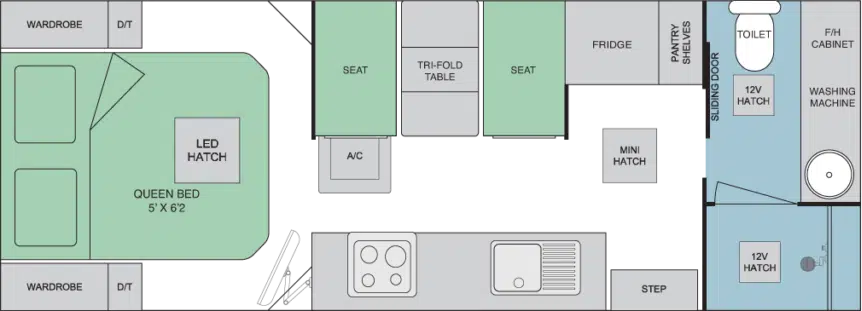

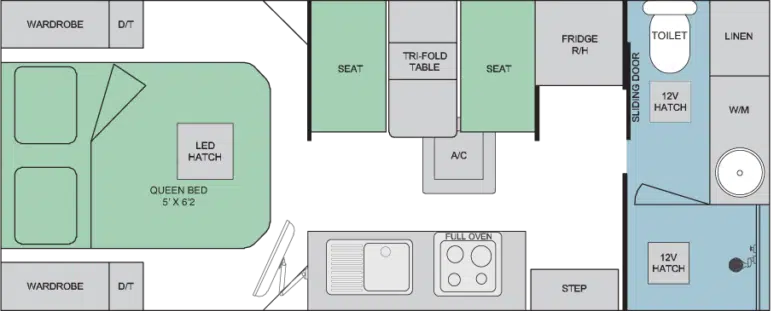

FR F2: 21'
Ball Weight 170 kg
Tare Weight 2250 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 4

FEATURES

FR F2: 21'

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR F2: 21'
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

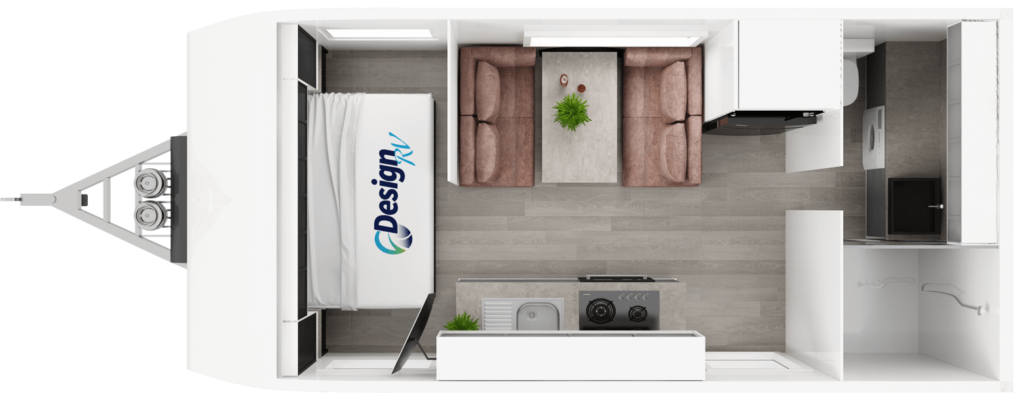

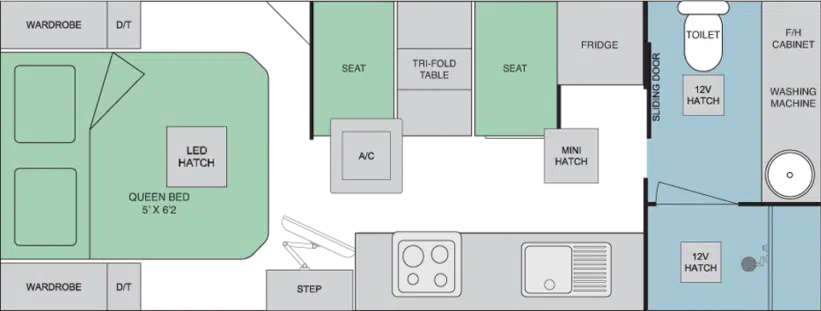

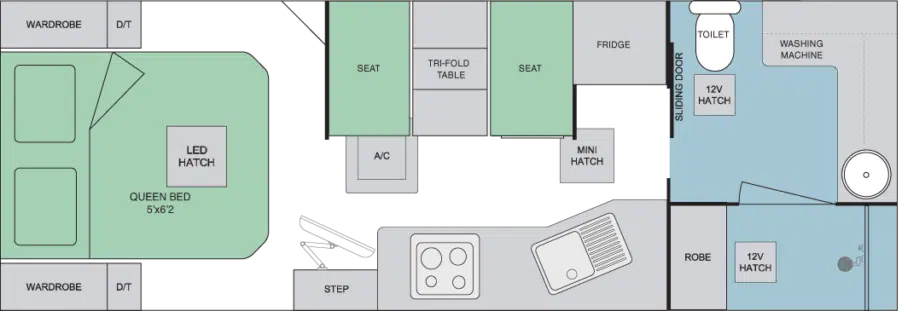

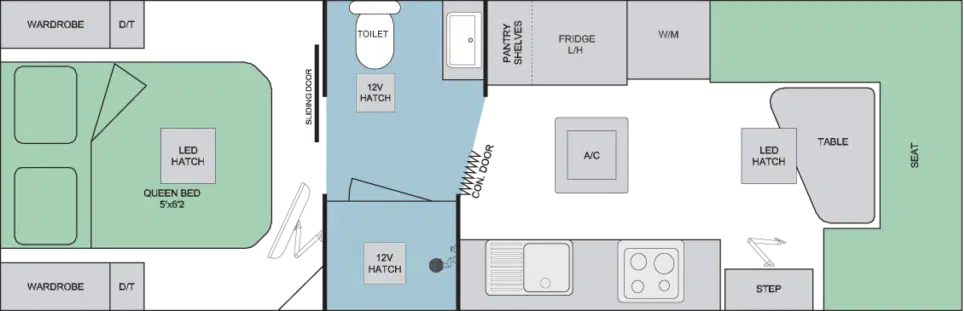

FR F2-5: 21'10"
Ball Weight 160 kg
Tare Weight 2410 kg
Internal Width 2450 mm
Internal Height 2975 mm
Sleeps 4

FEATURES

FR F2-5: 21'10"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR F2-5: 21'10"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

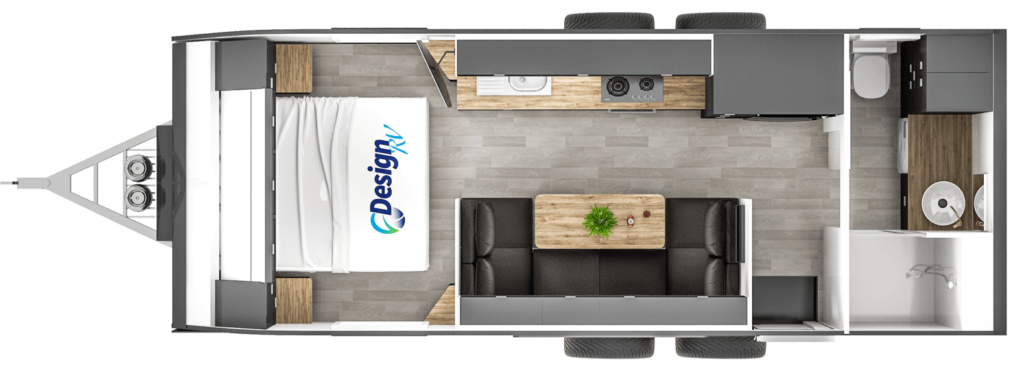

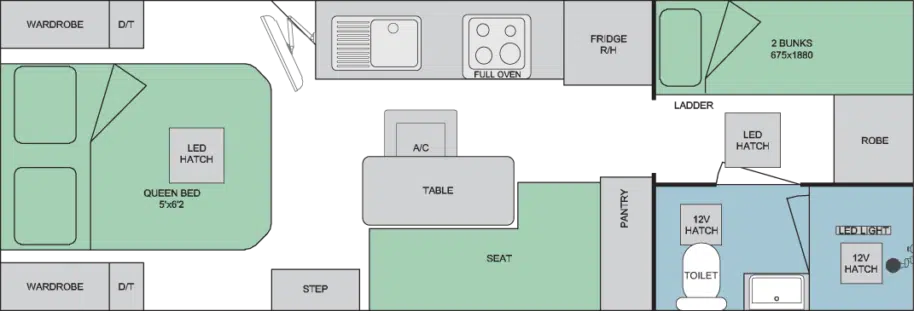

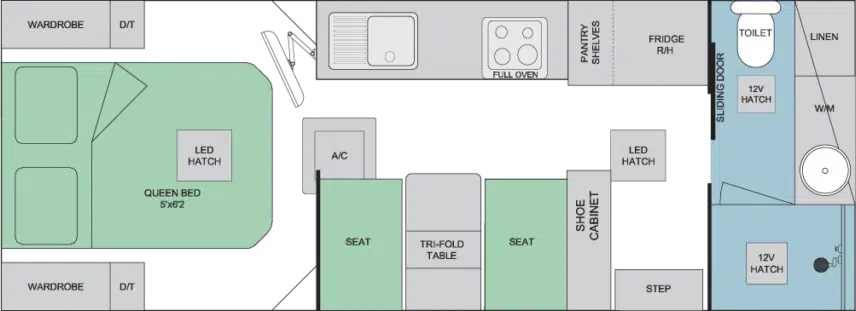

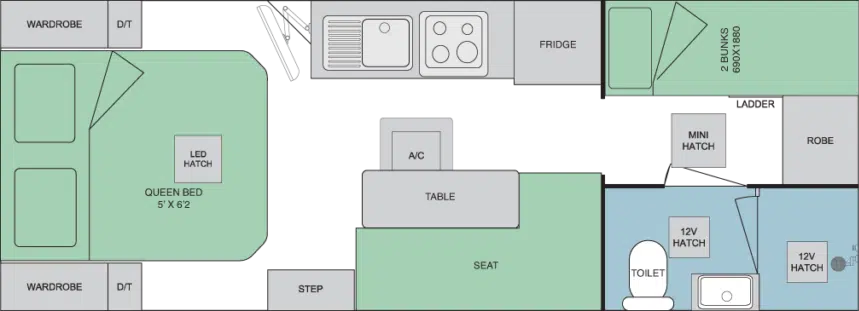

FR F2-6: 21'10"
Ball Weight 195 kg
Tare Weight 2460 kg
Internal Width 2450 mm
Internal Height 2975 mm
Sleeps 4

FEATURES

FR F2-6: 21'10"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR F2-6: 21'10"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR F4: 24'8"
Ball Weight Contact Dealer kg
Tare Weight Contact Dealer kg
Internal Width 2450 mm
Internal Height 2975 mm
Sleeps 6

FEATURES

FR F4: 24'8"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR F4: 24'8"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V10: 22'10"
Ball Weight 280 kg
Tare Weight 2480 kg
Internal Width 2450 mm
Internal Height 2975 mm
Sleeps 2

FEATURES

FR V10: 22'10"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V10: 22'10"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V1-1: 18'8"
Ball Weight 160 kg
Tare Weight 2040 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 2

FEATURES

FR V1-1: 18'8"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V1-1: 18'8"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V2-1: 19'
Ball Weight 245 kg
Tare Weight 2080 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 2

FEATURES

FR V2-1: 19'

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V2-1: 19'
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V3: 19'6"
Ball Weight 150 kg
Tare Weight 2190 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 2

FEATURES

FR V3: 19'6"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V3: 19'6"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V4: 19'8"
Ball Weight 190 kg
Tare Weight 2200 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 2

FEATURES

FR V4: 19'8"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V4: 19'8"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V5: 20'
Ball Weight 170 kg
Tare Weight 2285 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 2

FEATURES

FR V5: 20'

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V5: 20'
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V5-1: 20'6"
Ball Weight 160 kg
Tare Weight 2290 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 2

FEATURES

FR V5-1: 20'6"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V5-1: 20'6"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V5-2: 20'6"
Ball Weight 150 kg
Tare Weight 2295 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 2

FEATURES

FR V5-2: 20'6"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V5-2: 20'6"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V5-3: 20'6"
Ball Weight 150 kg
Tare Weight 2295 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 2

FEATURES

FR V5-3: 20'6"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V5-3: 20'6"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V6: 21'
Ball Weight 150 kg
Tare Weight 2290 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 2

FEATURES

FR V6: 21'

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V6: 21'
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V6-1: 21'
Ball Weight 150 kg
Tare Weight 2290 kg
Internal Width 2450 mm
Internal Height 2950 mm
Sleeps 2

FEATURES

FR V6-1: 21'

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V6-1: 21'
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V7: 21'6"
Ball Weight 185 kg
Tare Weight 2300 kg
Internal Width 2450 mm
Internal Height 2975 mm
Sleeps 2

FEATURES

FR V7: 21'6"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V7: 21'6"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V7-Recliner: 21'6"
Ball Weight 185 kg
Tare Weight 2300 kg
Internal Width 2450 mm
Internal Height 2975 mm
Sleeps 2

FEATURES

FR V7-Recliner: 21'6"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V7-Recliner: 21'6"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V8: 21'10"
Ball Weight 250 kg
Tare Weight 2500 kg
Internal Width 2450 mm
Internal Height 3200 mm
Sleeps 2

FEATURES

FR V8: 21'10"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V8: 21'10"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V8-Recliner: 21'10"
Ball Weight 250 kg
Tare Weight 2500 kg
Internal Width 2450 mm
Internal Height 3200 mm
Sleeps 2

FEATURES

FR V8-Recliner: 21'10"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V8-Recliner: 21'10"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

FR V9: 21'10"
Ball Weight 180 kg
Tare Weight 2450 kg
Internal Width 2450 mm
Internal Height 2975 mm
Sleeps 2

FEATURES

FR V9: 21'10"

CHASSIS

  • 50mm Ball Coupling
  • Spare Wheel Fitted to Bumper Bar
  • Lockable Coupling with Twin Safety Chains
  • Leaf Spring Suspension
  • Mesh Rack on A-Frame
  • Large Jockey Wheel Clamp
  • 8” Jockey Wheel
  • Supagal Australian Made Chassis
  • 4” Heavy Duty Chassis up to 21’6 models
  • 6” Heavy Duty Chassis above 21’6 models
  • 2” Chassis Raiser on 4” chassis only
  • Wind Up Jack and Wheel Brace
  • Heavy Duty 3 Arm Bumper
  • A-Frame Tap with Protection
  • Drop Down Stabilizer Jack Legs.
  • 205/70/R15 Light Truck Tyres & 15”
  • Alloy Wheels up to 21’6 models
  • 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
  • 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
  • 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
  • Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
  • Break-Away Safety System
  • Galvanised Wheel Arches
  • Water Tank Galvanised
  • Stoneguard Protection

Exterior

  • Quality Roll Out Awning
  • Black External Trim
  • Checkerplate Door Entry Surround
  • Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
  • Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
  • Front Window with Protector Shade (included in Design 8 only)
  • Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
  • Security Mesh Locking Door 2 Radius Cnr Main Door
  • Quality Metal Grab Handles to Each Corner of Van
  • External Large Fold Down Picnic Table
  • Wheel Spats.
  • 2 x Mini Roof Skylights with Blind & Flyscreen 1 in Bedroom + 1 in Lounge
  • Checker-Plate Front, Sides & Rear (600mm High)
  • Aluminium Composite Gloss Cladding, front, rear and sides
  • Fully Galvanised Lined Generator Compartment (Layout dependant)

INTERIOR

  • One Piece Plywood Floor
  • Plastic Cutlery Drawer Insert
  • Large Mirror in Ensuite
  • Full Laminate Splashback & Benchtops
  • Separate Shower & Toilet Ensuite with Glass Door Shower
  • Bed Head Padding
  • Recessed Cook Top with Laminex Lid Over Stove
  • Premium Vinyl Flooring
  • Smoke Detector
  • Fire Extinguisher
  • Lift Up Under Bed Storage (Not standard on Single Bed models)
  • Innerspring Mattress – Queen or Single Beds
  • Internal Roof Height of 6’6”
  • Large Stylish Grab Handle on Entry Wall at Door (Where available)
  • Stylish Positive Locking European Door Latches with Soft Open Gas Struts
  • Smooth Glide Drawers on Metal Runners
  • Wardrobe Cutouts with 240V and USB Sockets
  • Plush Upholstery with Side Swabs to Dinette
  • Square Edge Benchtops
  • Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
  • 2 x Single Towel Rails and Toilet Roll Holder
  • Bulk Heads with LED strip Lighting
  • Kitchen/Lounge area only

Plumbing

  • Mains Pressure Water Inlet
  • Waste Water Outlet
  • 12V Water Pump
  • A-Frame Mains Pressure Tap
  • External Gas Bayonet near Front Tunnel Boot
  • Large Deep Bowl Stainless Kitchen Sink with Drainer
  • Filtered Water Tap at Kitchen Sink
  • 2 x Lockable Water Tank Inlet
  • 2 x Up to 95L Water Tanks
  • 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
  • Digital Water Tank Gauges
  • Flick Mixer Taps – Kitchen and En-suite
  • China Vanity to En-suite

ELECTRICAL

  • 12v Rangehood
  • 1 x LED External Annexe Light
  • 2 x External Marine Speakers
  • Circuit Breaker & Earth Leakage
  • 12V Fan Hatch to Shower & Toilet
  • LED Lighting – Roof, Kitchen, Ensuite
  • 2 x LED Reading Lights in Bedroom
  • 2 x LED Reading Lights in Lounge
  • Roof Top Digital Amplified TV Antenna
  • Microwave Oven.
  • Gas/Electric Hot Water System
  • 240V 15Amp Inlet & 240V 10Amp Outlet
  • Reversing Camera and Car Monitor Kit
  • 12V/USB Socket at Kitchen Table and Outside Table
  • TV Coaxial Point at Outside Table
  • LED Entry Light and Grab Handle
  • Porcelain Bowl Toilet
  • 50Amp Anderson Plug
  • Portable Solar Charge Point
  • Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
  • 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
  • LED External Lights
  • Smart Charger – Battery Pack incl 100Amp DC Battery
  • 1 x 190w Solar Panel and 30Amp regulator
  • 24” Flatscreen TV/DVD combo on Wall
  • Mounted Bracket
  • CD/Radio Player
  • 2 x Internal Roof Speakers
  • 3 x Gas & 1 x 240V Hotplates with Mini Grill
  • IBIS Air Command MK4 Reverse Cycle
  • A/C or equivalent A/C
  • Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
  • Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)

ENQUIRY OPTIONS

FR V9: 21'10"
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

Loan Amount $

Deposit $

Loan Length/Period

Balloon/Residual $

Interest Rate (%)

Repayment Frequency

Loan Repayments

Disclaimer: This calculator tool is provided for estimation purposes and should not be taken as an official loan application or offer of a loan. Actual repayment amounts can depend on different factors and repayment frequency options may not always be available. We recommend you contact our finance team to learn more about available rates and options based on your circumstances.

MORE FROM - THE DESIGN RV RANGE

Kratzmann Caravans & RV's endeavor to provide you with up to date model information based on information from our brands. Occasionally this information becomes outdated due to changes by the manufacturer which we are not made aware of. No guarantee is given regarding the accuracy of the information contained on this website, however, our friendly sales team are available to give you specific model information as required. Caravans & Camper trailers pictured, and specifications detailed, may vary from models and equipment available in your area or as designs and builds change over time. Products are subject to change without notice. Images are for representational purposes only and may not accurately reflect the current models.

Over 150 RVs in stock

Burpengary
GET DIRECTIONS

OUR BRANDS



WE SUPPLY QUALITY ACCESSORIES FROM THESE BRANDS

navigator-logo
supex-logo
gripsport-logo
d-flector-logo
purpleline-logo
cruisemaster-logo
johnguest-logo
puretec-logo
truma-logo
narva-logo
winegard-logo
transco-logo
adcoprod-logo
caframo-logo
camec-logo
coast-logo
al-ko-esc-logo
alko-logo
dometic-logo
ampfibian-logo
aussie-traveller-logo
camco-logo
carefree-awnings-logo
redarc-logo
thedford-logo
trailer-mate-jacks-logo
best-logo
companion-logo
milinco-logo

Top
